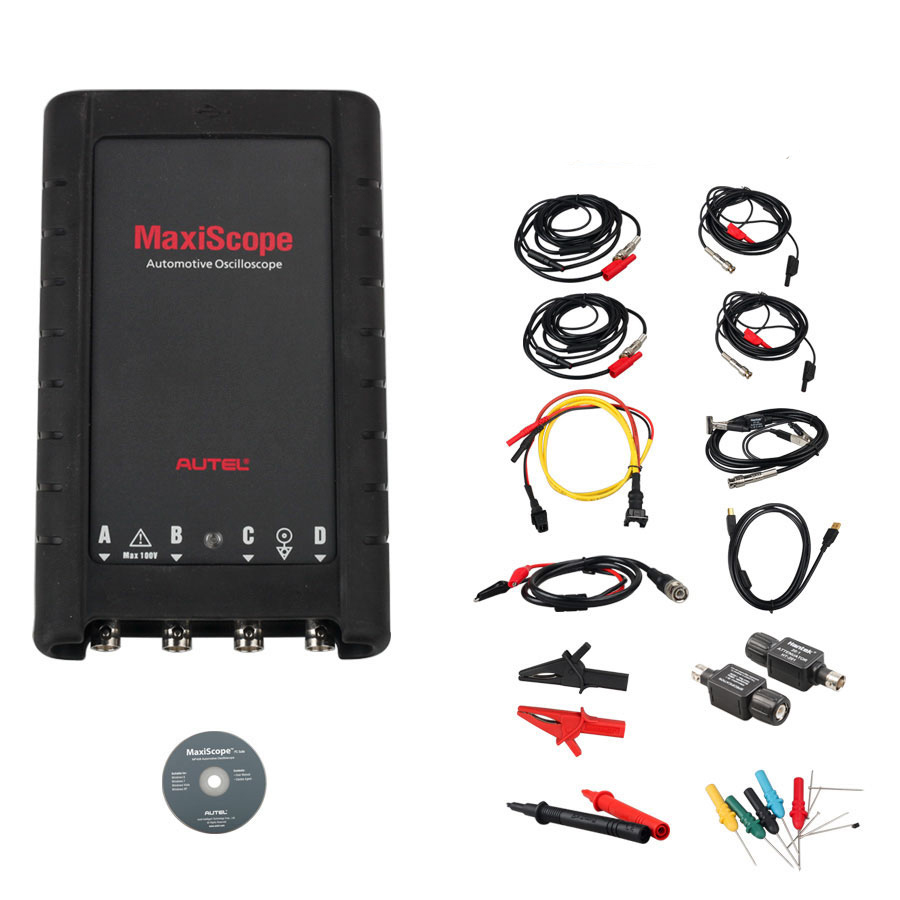

Autel MaxiScope MP408

Autel MaxiScope MP408

Item No.: CT135
Price: $565.00
Description
Featuring the user-friendly UI design combined with the unrivalled hardware specs, the Autel MaxiScope MP408 system is able to measure and test virtually all the electrical and electronic components and circuits in any modern vehicles. Power for the Autel MaxiScope MP408Module comes directly from the USB port of the connected PC, making the system very versatile and portable to use.

Autel MaxiScope MP408 Feature and Functions:
Features one-click auto setup of voltage scale and time base
Works on all makes and models of modern vehicles
Compatible with LIN, CAN and FlexRay data bus standards
Reads and displays electrical signals in high resolution waveforms
Allows manual editing of measurement parameter display
Records and plays back waveform data
Features color coded 4-channel control panel
Intuitive UI design features easy trigger point adjustment and real time scale info display
Direct power supply through USB connection
Free online software update through the Internet
Portable design with strong housing and protective rubber boot

Autel MaxiScope MP408 Specifications:
Vertical resolution:12 bits
Channels:4
Bandwidth:20MHz
Accuracy:1%
Sensitivity:10mV/div to 20V/div
PC Interface:USB 2.0 – Cable supplied
Power Requirements:Powered from USB port
Input Ranges (full scale):±v50mV to ±100V in 11 ranges
Input Impedance:1MΩ in parallel with 22pF
Input Type:Single-ended, BNC connector
Input Coupling:Software selectable AC/DC
Overload Protection:±200V on single input
Buffer Memory:32M samples shared among active channels
Waveform Buffer:Up to 1000 waveforms
Timebase Ranges:100ns/div to 1000s/div
Operating Temperature Range:0°C to 50°C (15°C to 40°C for quoted accuracy)
Storage Temperature Range:-20°C to +60°C
Storage Humidity Range:5% to 95%RH, Non-condensing
Maximum Sampling Rate (Single Shot):
 -1 or 2 channels in use:80MS/s
 -3 or 4 channels in use:20MS/s
