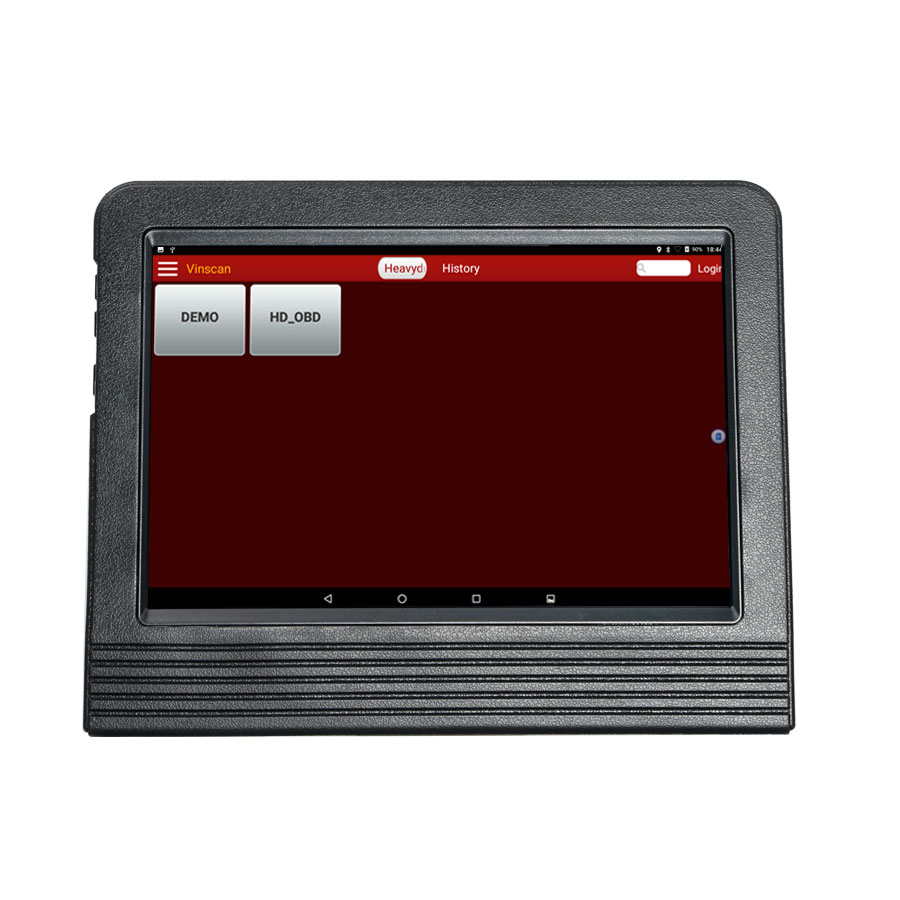

Launch X431 V+ Heavy Duty
Item No.: TT01
Launch X431 V+ Heavy Duty is specifically designed to diagnose diesel and gas-fueled heavy-duty vehicle models of 12V & 24V voltage.
Launch X431 V+ Heavy Duty is a new Android-based vehicle trouble diagnostic device based on android OS. Through the Bluetooth communication between vehicle diagnostic connector and variant mobile intelligent terminals, Launch X431 V+ Heavy Duty achieves full car model and full system vehicle trouble diagnosis, which include Reading DTCs, Clearing DTCs, Reading Data Stream, Actuation Test and Special Functions.
What is advantange compare with Launch X431 V+ Heavy Duty?
1. HUAWEI Hisilicon Quad-core 1.2G Hz, faster speed.
2. 10.1 inch multi touch screen capacitor provides better view for diagnostic and data flow.
3. 1GB of memory and 8 GB of storage for data.
4. Contain 72 car brands from US, europe, asia and so on.
5. Support wifi / Bluetooth and one-click update, 999USD/Year.
6. 6600 mAh Li battery, can keep working for 8 hours.
7. Multi language available: English, German, French, Italian
8. Original goods with full time technical service and warranty.
Launch X431 V+ Heavy Duty Main Features:
1. Unique LAUNCH cloud diagnosis technology
2. Support wired diagnosis
3. Support diagnosis for all car models of gasoline, diesel and natural gas engines that meet
Euro III-Euro VI standards
4. Industrial shockproof design, perfect for the working environment in repair shops
5. Advanced modularization design technology, automatically switch between12V and24V
6. Diagnostic hardware is designed according to international standard, compatible with diagnostic interfaces of all car models worldwide
7. Multiple diagnostic devices available, such as X-431 PR03S, X-431 PAD III, etc
Launch X431 V+ Heavy Duty Software diagnostic platform:
1. Read fault code
2. Clear fault code
3. Read data stream
4. Actuation Test
5. Special functions
6. Read freeze frame
7. ECU program
Main Support Truck models:
China: DONGFENG SERIES \ FAW JIEFANG \ SINOTRUK \ FOTON AUMAN \ JAC SERIES \ YUTONG \ KINGLONG……
USA: FREIGHTLINER, INTERNATIONAL, KENWORTH, PETERBILT, STERLING…
Europe: M E RCE DES- BE NZ\ MAN \ VOLV0 \ SCANIA \ IVEC0 \ DAF \ RENAU LT
Asian: HIN0, FUS0, ISUZU, UD, HYUNDAI, ASHOKLEYLAND…
Main working Parameters:
Relative humidity: 10%-80%
Product size: 110mm*178mm*50mm
Communication: USB, Bluetooth, Serial Port
Launch X431 V+ Heavy Duty Features:
Diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and Chinese. Diagnosis functions include: Read DTCs, Clear DTCs, Read Data Stream, Special Functions etc.
Specially designed for Android platform with user-friendly interface.
Via Bluetooth, it is simple for the diagnostic connector to communicate with X-431 V+.
Equipped with an exclusive X-431 V+ protective sleeve to prevent it from being damaged.
Multiple maintenance and repair functions are supported to boost shop revenue: Electronic throttle position reset/learn and gear learning etc.
2. Repair Data: Provides a mass of service information for various vehicle models, which enables users to retrieve service data of some vehicle online.
3. Update: Lets you update your diagnostic software more efficiently.
4. Browser: Built-in Wi-Fi module makes surfing on the internet freely.
5. Email: Allows you to send and receive emails.
6. Settings: To configure your personalized X-431 V+ through it.
7. Other additional functions: Alarm, Calendar and Calculator etc.
Launch X431 V+ Heavy Duty Technical Parameters:
Operating system: Android 5.1
CPU: Quad-core 1.3GHz processor
Battery: 7000mAh rechargeable polymer lithium battery
Storage capacity: 16GB
LCD: 10.1 inch
LCD resolution: 1280 x 800
Touch screen: Capacitive touch screen
Cameras: 5.0 mega pixels rear and 2.0 mega pixels front
Wi-Fi: Support 802.11a/b/g/h
Working temperature: 0℃ ~ 45℃
Storage temperature: -20℃ ~ 70℃
